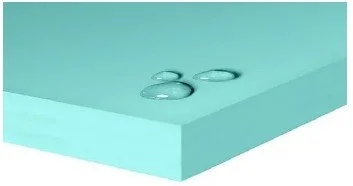

Newton XPS 500C is a range of 50 mm deep, closed-cell thermal insulation boards made from rigid extruded polystyrene foam (XPS). Newton XPS 500C boards are used to form a 50 mm insulated spacer adjacent to the Basedrain and Floordrain drainage channels within the Newton System 500 Cavity drain waterproofing system, where it remains dimensionally stable even when fully immersed.

The insulation boards can also be used as a protection for Newton System 100 & 400 applied waterproofing membranes applied externally to new earth retained structures or retained walls, providing protection, insulation and drainage within one product.

Newton XPS 500C - 50mm Insulation

KEY BENEFITS

  • Excellent thermal insulation characteristics with a very low coefficient of thermal conductivity

  • Closed cell structure with no connecting capillaries resulting in extremely high resistance to water absorption and diffusion of water vapour

  • Capable of permanent submersion in water

  • Fully inert when subjected to climatic variations

  • High mechanical and compressive strength and high dimensional stability

  • Can be used on floors, roof, deck insulation or other places where high load capacity is required

  • Easy to transport, cut and apply

  • Completely rot proof and does not develop any mould or other efflorescence.

  • No nutritional value for rodents, insects, etc

  • Good resistance to acids, alkaline, aggressive ground containments and inorganic gases

Code: 500C

Packaging: Confirm on order

Colour: Green/Blue
