Enhanced Compressive Resistance: Designed with more studs per square meter, eco Floor offers higher compressive resistance than standard cavity drain membranes, making it ideal for floor installations.

  • Sustainable Construction: Made from recycled materials, eco Floor contributes to environmentally friendly building practices without compromising on performance.

  • Certified Durability: Backed by a 30-year guarantee CodeMark and BBA Certificates, ensuring reliable and long-lasting waterproofing.

  • Chemical and Biological Resilience: Inert and resistant to water, alkalines, saline solutions, organic acids, minerals, hydrocarbons, bacteria, fungi, and small organisms, providing robust protection in various conditions.

  • Radon Barrier: Independently tested as an effective barrier to radon ground gases, eco Floor integrates seamlessly with the Newton PAC-500 system for combined ground gas and waterproofing protection.

Newton eco Floor is a high quality 8mm recycled cavity drain floor membrane, for use within the Newton CDM System, our internally applied waterproofing system that also includes drainage and pumping systems.

Newton 508 eco Floor Membrane - 8mm Cavity Drain Membrane & Radon Barrier

KEY BENEFITS

  • Third-party tested for long-term compressive load to ISO 25619-1 (2% compression over 50-years)

  • Does not require extensive and damaging preparation to the wall surface • Speed of installation

  • Provides vapour control used with humidity control systems, capable of delivering an environment to all levels within a Grade 3 environment to BS 8102:2022

  • Independently certified as a barrier to hydrocarbons and radon gas

  • Resistant to rot, chemically aggressive groundwater, acids and alkalines, efflorescing salts and hydrocarbon contamination and 100% recycled

Code: M2

Size: Roll 2.5m x 20m

Colour: Black

Packaged Weight: 40kg

Area: 50/m²

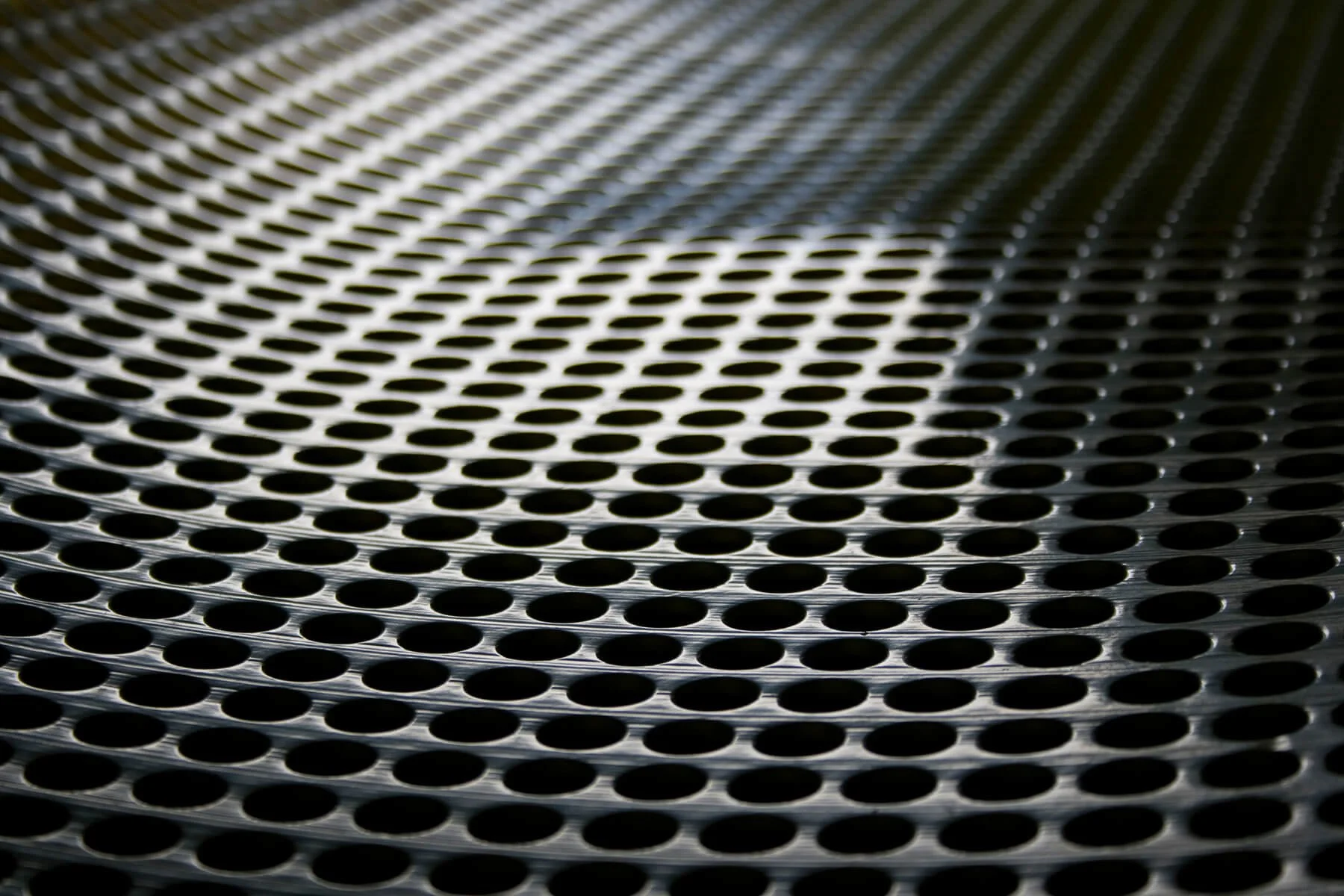

Newton 520 Membrane - 20mm Cavity Drain Membrane

High Drainage Capacity: With a 20mm deep stud profile, 520 eco Floor provides exceptional drainage capacity, ideal for areas at risk of severe water penetration.

Sustainable and Durable: Made from 100% recycled materials, this eco-friendly membrane offers a 30-year guarantee and a life expectancy that matches the design life of the building.

Code: M4

Size: Roll 2.07m x 20.0m

Colour: Black

Weight: 37.62kg

Area: 40m²
