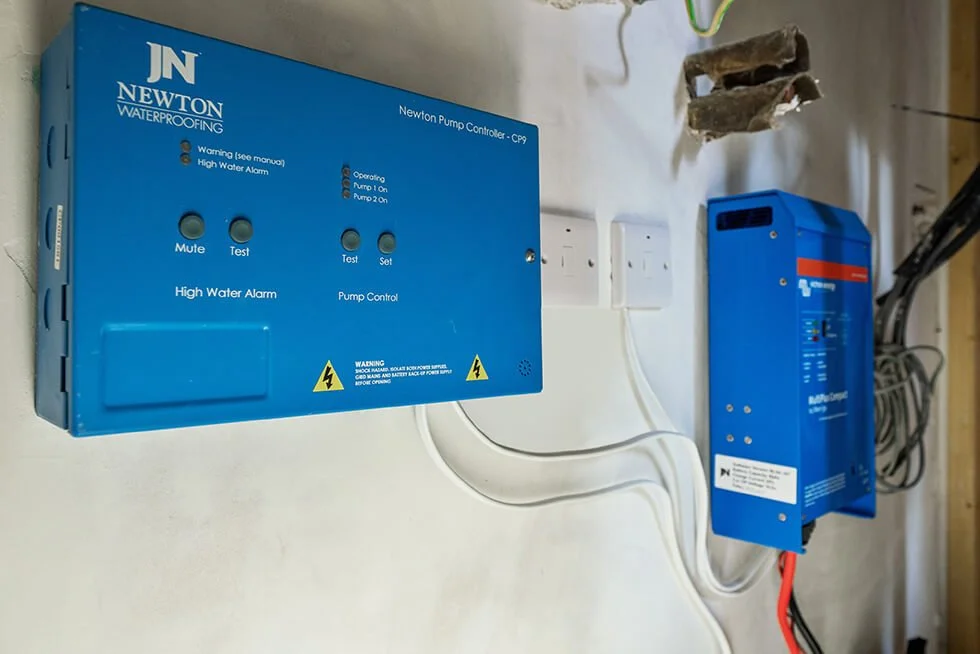

Newton Pump Controller

  • Enhanced reliability: Ensures optimal performance through automatic weekly pump testing, preventing downtime and pump failure.

  • Continuous operation: Dual power supply capabilities (grid mains and battery backup) provide consistent water pumping during power outages.

  • User-friendly: Simple installation and control, with a test button for easy manual pump activation and diagnostics.

The Newton Pump Controller is designed to be used with matched pairs of manual versions of Newton Pumps of 250 watts to 750 watts, and provides a sophisticated, yet simple to install – twin pump control system which offers some of the features of the Newton Control Panel-Pro, but at a lower cost.

The major feature of the control system is the self diagnostic program that operates both pumps on a weekly basis to ensure that they are not stood idle for extended periods in order to prevent seizure and premature pump failure. Each pump will operate for 5 seconds, (one after the other) once per week.

The Newton Pump Controller will operate a maximum of two 750W 230V AC pumps. The panel is supplied with a vertical water level float switch and High Water Alarm float switch. The panel is designed to be used with an optional Newton Victron Battery Backup System, sized to suit the pumps and installed with sufficient battery power to ensure continued pumping during power outages.

Newton High Level Water Alarm

Designed to detect high water levels within pump sump chambers and is included within the Newton Titan-Pro and Newton Titan pumping systems. The alarm is battery operated and uses a standard 9V PP3 battery.

The alarm can be programmed to automatic reset or manual reset after an alarm occurrence. A mute button to the front face silences the alarm once the alarm condition is discovered. A flashing alarm light gives visual indication of an alarm condition and this light will continue to show even when the alarm sounder is muted.

Code: PA50

Size: 152mm x 92mm x 37mm (8mm if mounted in back box)

Weight: 700g

Power Supply: 9V DC from supplied PP3 battery

DAB NGPANEL

This pumps control unit it’s ideal for filling and emptying operations. it is designed to monitor water levels in tanks or wells in real time; control the pumps' automatic starting and stopping; provide thermal overload protection for the motor; and give the option of monitoring the system's operation remotely. With a certified IP55 protection rating, it can even be installed outdoors, and it’s perfect to upgrading obsolete pumping systems, since it can be used with pumps of other brands.
The display ensures easy use.


Used in conjunction with DAB Virtual Cockpit and DConnect, NgPanel takes user experience to the next level, providing pump control from any location.


On a single clear, user-friendly screen, DAB Virtual Cockpit summarises all the key information to be monitored in order for the pumping system controlled with NgPanel to work at its best.


With the new DConnect portal and app, you can communicate with NgPanel even metres away from the installation — or even from the comfort of your living room — to monitor and control the system in the same way as your day-to-day interactions with the smart objects we're all familiar with.
NgPanel is equipped with Bluetooth and Wi-Fi connectivity.
