Newton HydroTank 301-EP Metal Waterbar

HydroTank 301-EP Metal Waterbar features a flexible, adherent coating on one side, which is covered with a granular material. The rough coating creates a permanent watertight seal with the surrounding concrete to create a waterbar that works immediately, without requiring activation by water as with hydrophilic waterbars.

Code: SX301-E

Packaging: 6m

Colour: Silver or Black

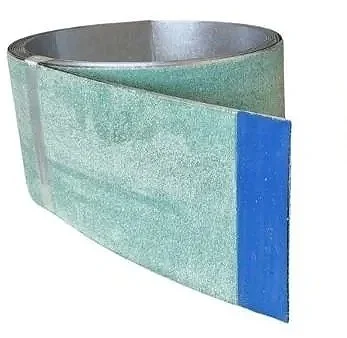

Newton HydroTank 301-SP Metal Waterbar

HydroTank 301-SP is a single side coated metal waterstop for sealing construction joints in reinforced concrete structures. 301-SP builds up its function once the coating gets in contact with humidity/water. The crystals integrally bond to the concrete. After which a coating below the crystals start to swell which will initiate a swell pressure to build up.

Code: SX301-SP

Packaging: 6m

Colour: Silver/Green

Instant, Permanent Watertight Seal: HydroTank 301 Coated Metal Waterbars provide an immediate, permanent watertight seal with its adhesive, reactive polymer coating, ensuring robust protection against water infiltration.

  1. Effortless Installation, Maximum Efficiency: Quick and easy to install with special clips to reinforcement steel, HydroTank 301 eliminates the need for traditional kickers, embedding seamlessly within concrete for effective water blockage.

  2. Superior Water Pressure Resistance: Certified to withstand up to 5 bar (50m) of water pressure and resistant to all naturally occurring groundwater types, HydroTank 301 ensures durable, versatile protection for concrete structures.

Coated metal waterbar systems used for sealing kickerless construction joints within retained concrete structures. It features an adhesive, reactive polymer coating on one of its sides which creates a permanent watertight seal that works immediately.

Installation is quick and easy with the waterbar fitted in place to the reinforcement steel with special clips so that after the placement of the concrete, the waterbar is fully embedded within the two adjoining elements, completely blocking the passage of water through the joint.

Newton HydroTank 301 Metal Waterbars are certified to resist water pressure of up to 5 bar (50m), and is resistant to all types of naturally occurring ground water types.

TYPICAL APPLICATIONS The waterproofing of construction joints to placed concrete elements of earth retained structures.

• Raft - Raft

• Raft - Wall

• Wall - Wall
