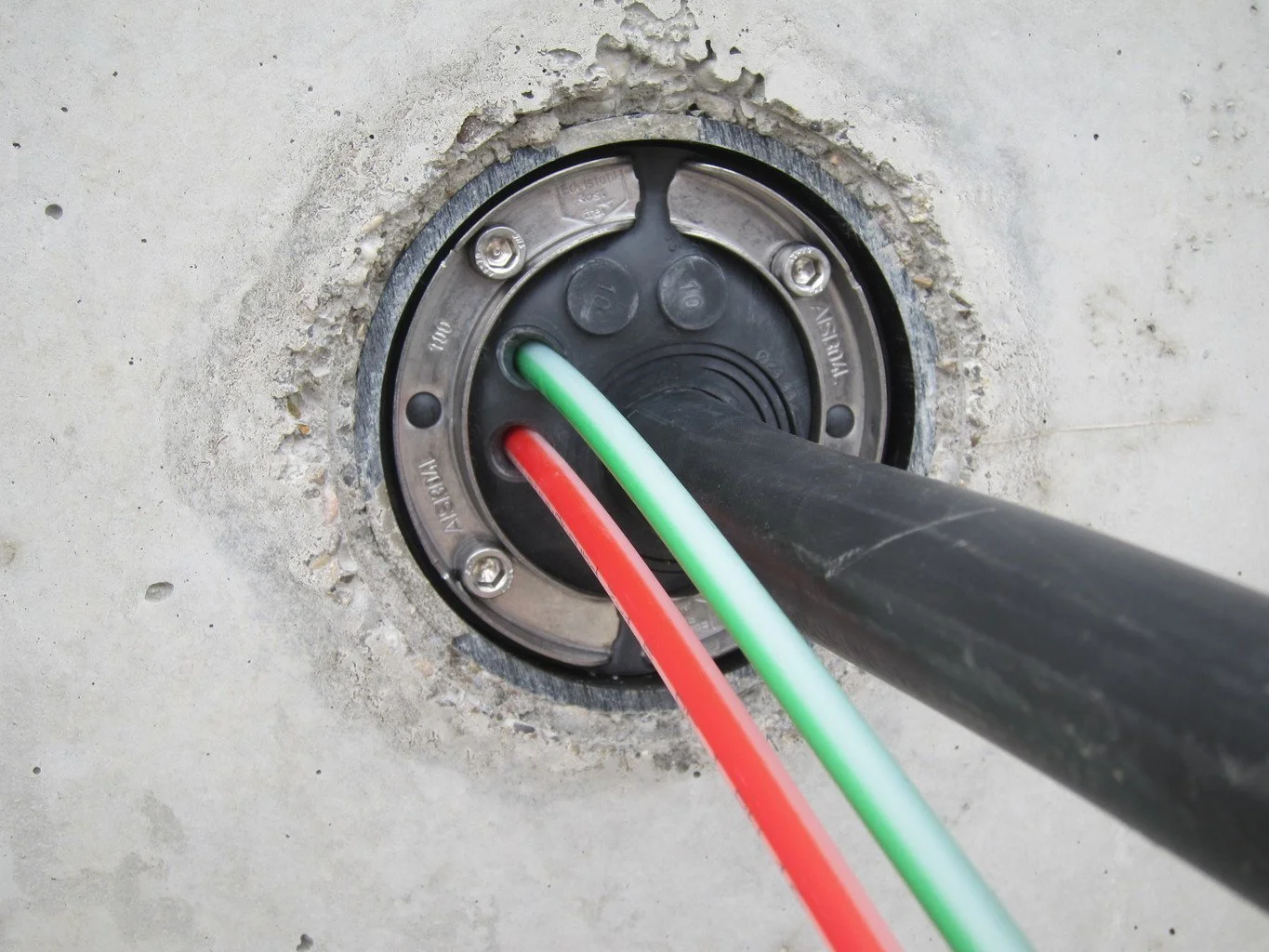

Press Seal (Graduated Segments)
The standard press seal is for sealing cables in core drills or wall sleeves. The Split design allows for the sealing of new cables to be installed or cables that have already been laid.
Code: HSD-SSG
Sizes: 100, 150 or 200mm I/D
Location: Internal seal
Press Seal (Infinite Segments)
The standard press seal is for sealing cables in core drills or wall sleeves. The Split design allows for the sealing of new cables to be installed or cables that have already been laid.
Code: HSD-SSG-L
Sizes: 100, 150, 200, 250 or 300mm I/D
Location: Internal seal

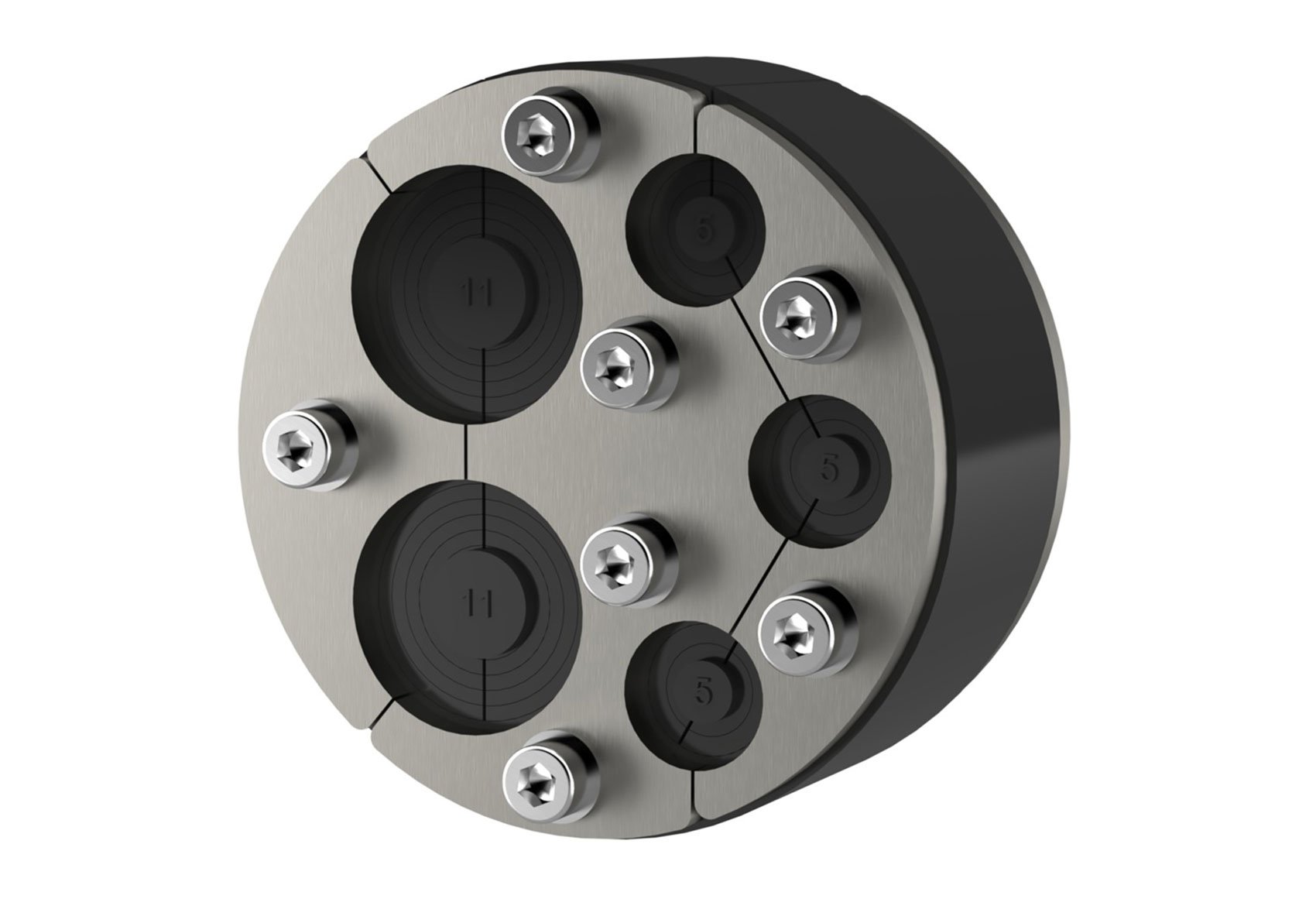

Press Seal (Segmented Ring Technology)
The standard press seal is for sealing cables in core drills or wall sleeves. The Split design allows for the sealing of new cables to be installed or cables that have already been laid.
Code: HRD-SG
Sizes: 80, 100 or 104mm I/D
Location: Internal seal
Cement-Coated Wall Sleeve
For use in waterproof concrete tanks, with a coating that merges seamlessly into the concrete
Sizes: 80 or 100mm I/D
Used to seal: Service entries
Location: External seal

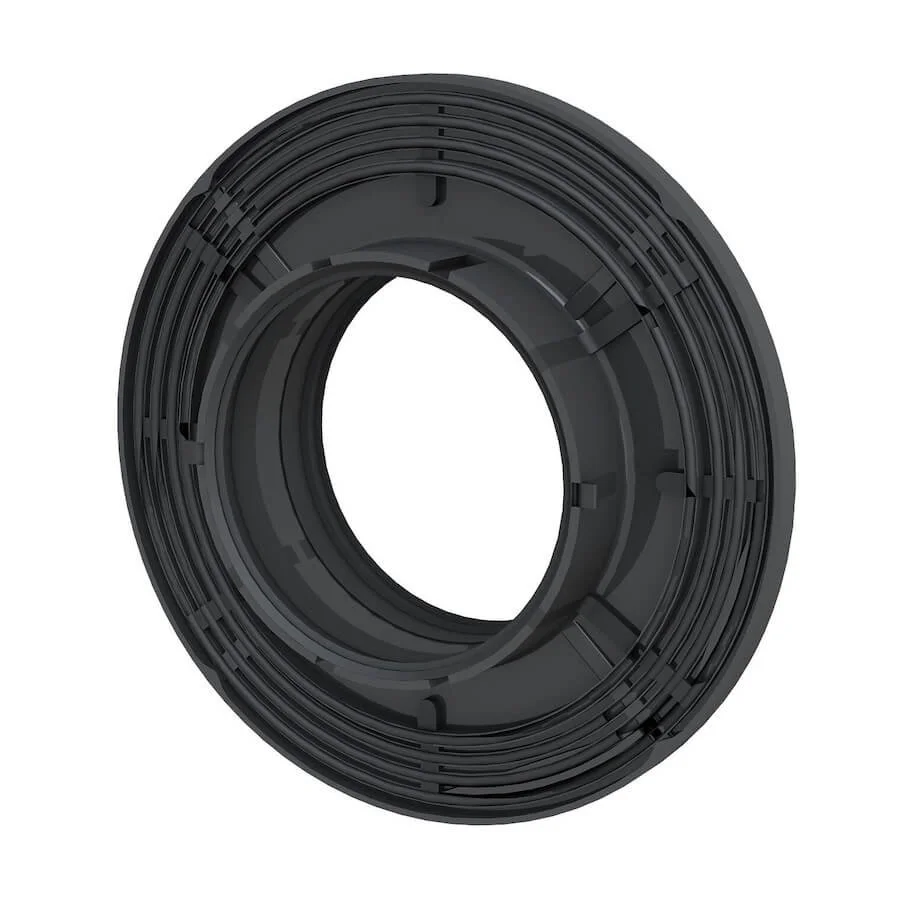

KG-FIX Wall Collar
Water barrier flange for the watertight integration of waste water pipelines into concrete walls and floors.
Code: KGF
Used to seal: Waste Pipes
Location: External seal
Newton Systems NZ has access to the complete range of Hauff-Technik penetration sealing systems through our close partnership with Newton Waterproofing UK, who are a Specialist Trade Partner of Hauff-Technik—one of Europe's leading manufacturers of sealing systems for cable, pipe, and service entries.
This partnership enables us to offer proven, high-performance Hauff-Technik solutions throughout New Zealand, backed by the technical expertise and design support of Newton Waterproofing UK. The products featured below represent just a small selection of the innovative Hauff-Technik range, all designed to provide reliable, long-term protection against groundwater and ground gases.
Service penetrations through basement walls and below-ground structures are among the most common sources of water ingress and gas migration. With a vast portfolio of purpose-designed products, Hauff-Technik provides engineered mechanical sealing systems that ensure service ducts and the cables or pipes passing through them remain permanently watertight and gas-tight, delivering long-term reliability for both new-build and refurbishment projects.
